Features
Infra-Red ( IR ) sensor for precise and reliable CO2 detection;
HEPA air filtration provides class 100 air purification;
High temperature or moist heat function makes it easy to sterilize;
Temperature control on the door prevents condensation ;
Audible and visual alarm for over limit status;
Mirror grade stainless steel chamber with round corner for easy clean up.
Specifications
| Model | CI-191C | CI-191CX | CI-191CHX | CIB-191C | CIB-191CX | CIB-191CHX |
|
Product Name |
CO2 Incubator (191L) |
CO2 Incubator (191L, Dry Heat Sterilization, Touch Screen) |
CO2 Incubator (191L, Dry Heat Sterilization and RH Controller, Touch Screen) |
CO2 Incubator (191L) |
CO2 Incubator (191L, Moist Heat Sterilization, Touch Screen) | CO2 Incubator (191L, Moist
Heat Sterilization and RH Controller Touch Screen) |
| Capacity | 191L | |||||
| Temp. Range | Room Temp. Plus 5℃~60℃ | |||||
| Temp. Accuracy | ||||||
| ±0.1℃ | ||||||
| Temp. Uniformity | ±0.3℃(@37℃) | |||||
| CO2 Sensor | IR | |||||
| CO2 Control Range | 0~20% | |||||
| CO2 Control Accuracy | ±0.1% | |||||
| Recover Time after Open Door on Temp. | ≤6min (@37℃) | |||||
| Recover Time after Open Door 30s on Co2 |
≤6min (@5%) |
|||||
| RH Type | Evapor Naturally | RH Control | Evapor Naturally | RH Control | ||
| Max. Humidity | 95% (@37℃) | |||||
|
RH Control Range |
NA |
10%~95%
RH Naturally |
NA |
10%~95%
RH Naturally |
||
| RH Set Accuracy | NA | ±1% | NA | ±1% | ||
| RH Control Accuracy | NA | ±5% | NA | ±5% | ||
| RH Uniformity | NA | ±2% | NA | ±2% | ||
| Water Refill on RH Controller |
NA |
Automatic |
NA |
Automatic |
||
| Principle of RH Sensor | NA | Capacitance | NA | Capacitance | ||
| Disinfection | 140℃ Dry Heat Sterilization | 90℃ Moist Heat Sterilization | ||||
| Door Open Direction | Rightward | |||||
|
Display |
NA |
7” Color Capacitance Touch Screen |
NA |
7” Color Capacitance Touch Screen | ||
| Touch Screen Type | NA | Capacitance | NA | Capacitance | ||
| Auto-lock | NA | Yes | NA | Yes | ||
| Auto-close Screen | NA | Yes | NA | Yes | ||
| Protect Set Parameters | NA | Passwords Protect | NA | Passwords Protect | ||
| Display the Date | NA | In 7 Days | NA | In 7 Days | ||
| Model | CI-191C | CI-191CX | CI-191CHX | CIB-191C | CIB-191CX | CIB-191CHX | |
|
Date Curve Display |
NA |
Temp. Curve, CO2 Curve,
RH Curve, Speed Curve ( with CO2 Resistant Shaker) |
NA |
Temp. Curve, CO2 Curve,
RH Curve, Speed Curve ( with CO2 Resistant Shaker) |
|||
| Max. Number of Shelves | 13 | ||||||
| Standard Number of Shelves | 4 | ||||||
| Insulation | Dry-Wall | ||||||
| U Disk Download Date | NA | Yes | NA | Yes | |||
| Date Store Years | NA | More than 912 days | NA | More than 912 days | |||
| Date Store Time | NA | 1min | NA | 1min | |||
|
Date Store Types |
NA |
Time, Temp, Speed ( with CO2 Resistant Shaker), RH, Machine Status |
NA |
Time, Temp, Speed ( with CO2 Resistant Shaker), RH, Machine Status | |||
| Auto-run after Power Recovery | Yes | ||||||
| Noise Level | ≤53dB | ||||||
| Water Sparge Resistant | Yes | ||||||
| Interface Languages | NA | Chinese or English | NA | Chinese or English | |||
| Volume of Humidity Pan | 3L | NA | 3L | NA | |||
| Power | ≤1300W | ||||||
| Power Supply | AC 220V±22V，50Hz / 60Hz | ||||||
| CO2 Resistant Shaker (Option) | NA | CO-06U Series Option | NA | CO-06U Series Option | |||
| Mobile Monitor and Control by WiFi (Option) | NA | Option | NA | Option | |||
| PC Monitor and Control by RS485 (Option) | NA | Option | NA | Option | |||
| Net Weight | 125kg | 129kg | 125kg | 129kg | |||
| Outside Dimensions (WxDxH) |
670x705x1010mm |
||||||
| Chamber Dimensions (WxDxH) |
705mm |
||||||
| Temp. Alarm | Adjustable | ||||||
| CO2 Alarm | Adjustable | ||||||
| HEPA | NA | Yes | NA | Yes | |||
Accessories
| Part Number | Specifications | Note | HEPA |
| CIA13
(Standard Configure) |
φ140x44mm | Service Life: 1 year |  |
| Part Number | Specifications | Note | Inlet Filter HEPA |
| CIA15
(Standard Configure) |
φ54x53mm | Service Life: 1 year
Filtration of Minimum Particles: 0.22μm Max.withstand voltage : 0.3Mpa |
 |

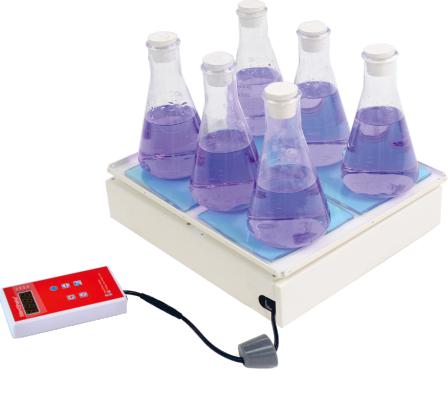

| Part Number | Specifications | Note | CO2 Orbital Shaker |
| CO-06U(Optional) | φ19mm Orbit ，16kg
305x360mm(Platform) |
主机尺寸： 360x330x96mm 控制盒： 90x160x26mm |
 |
| CO-6UC2(Optional) | φ30mm Orbit，16kg
305×360(Platform) |
||
| CO-06UC5(Optional) | φ19mm Orbit，17kg
300x360mm(Aluminum Platform) |
||
| CO-06UC6(Optional) | φ50mm Orbit，16kg
313x359mm(Platform) |

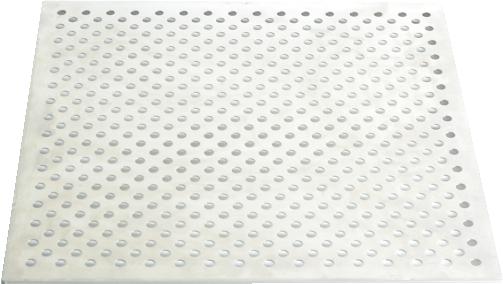

| Part Number | Specifications | Note | Partition |
| CIA12(Standard Configure) | 475x475x12mm | Standard Partition， Bearing: 13kg |  |
| CIA24(Optional) | Heavy partition ，
Bearing: 23kg |

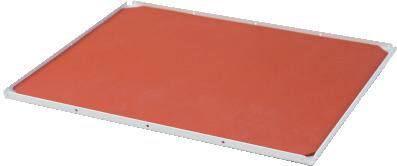

| Part Number | Specifications | Note | Rubber Platform |
| OSA12(Optional) | 305x360mm |  |

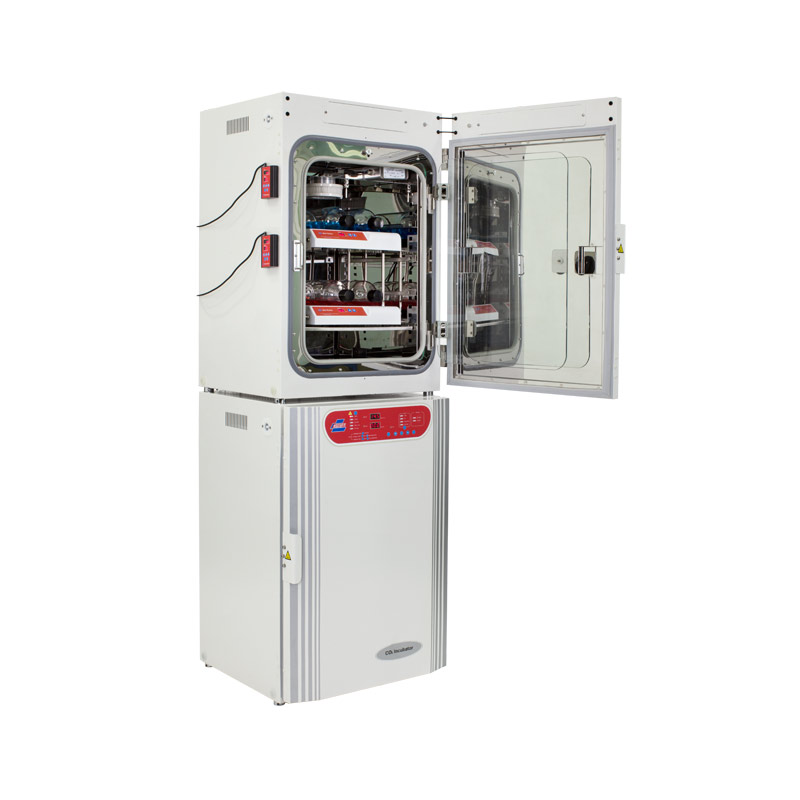

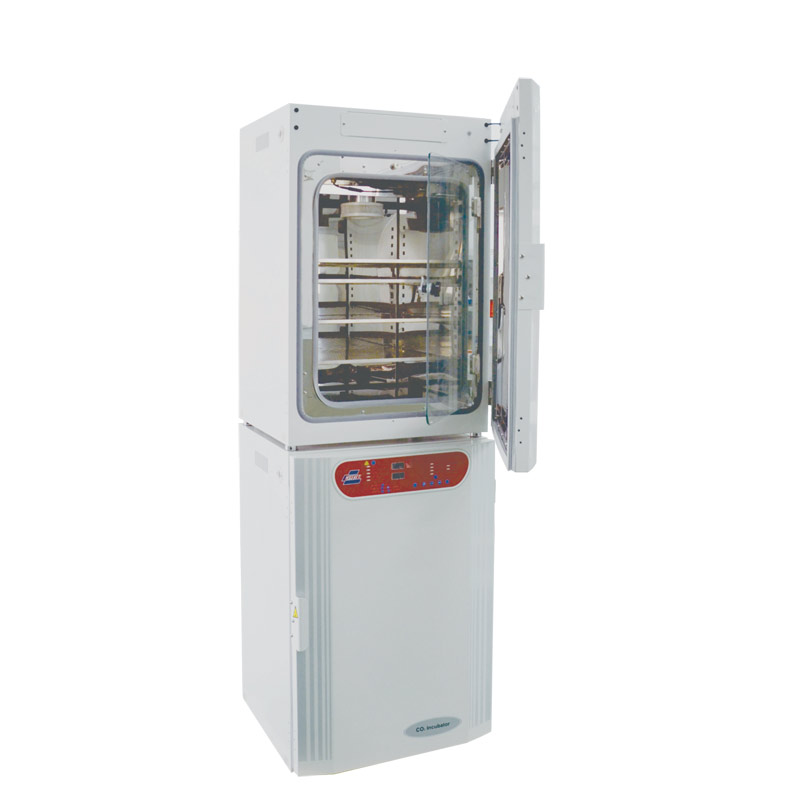

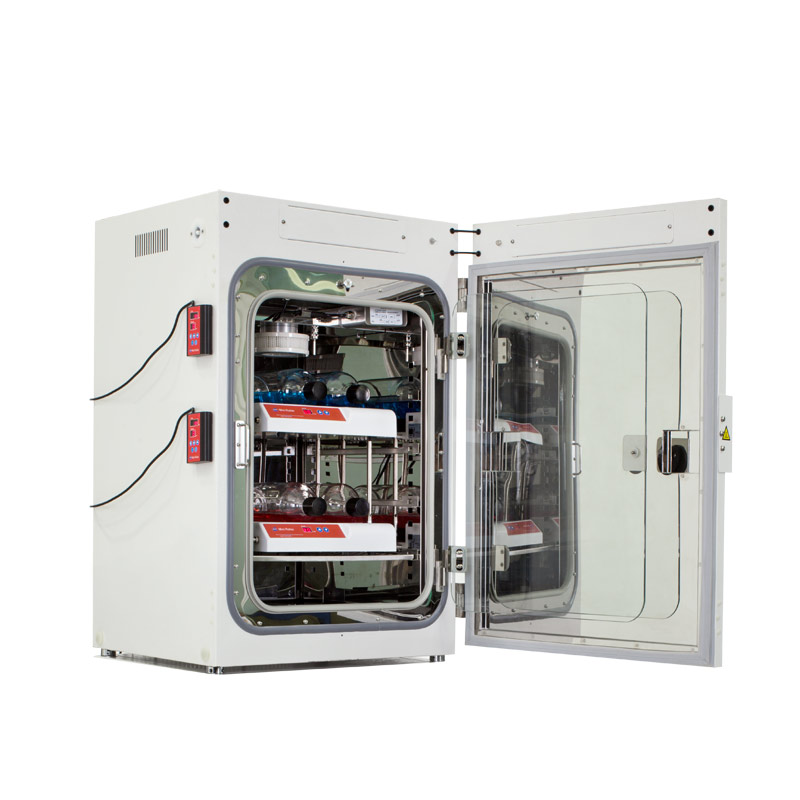

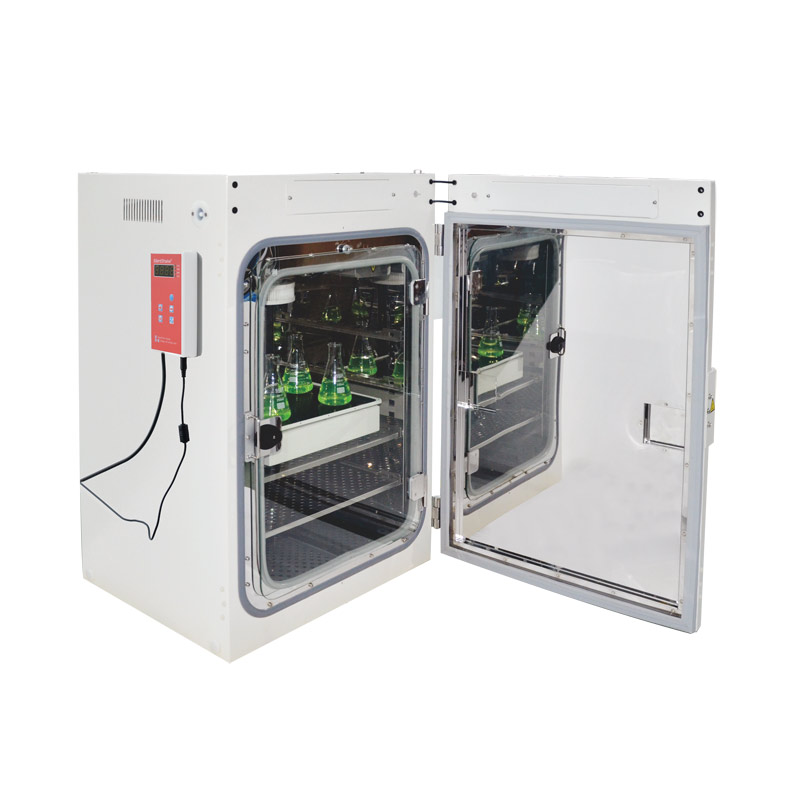

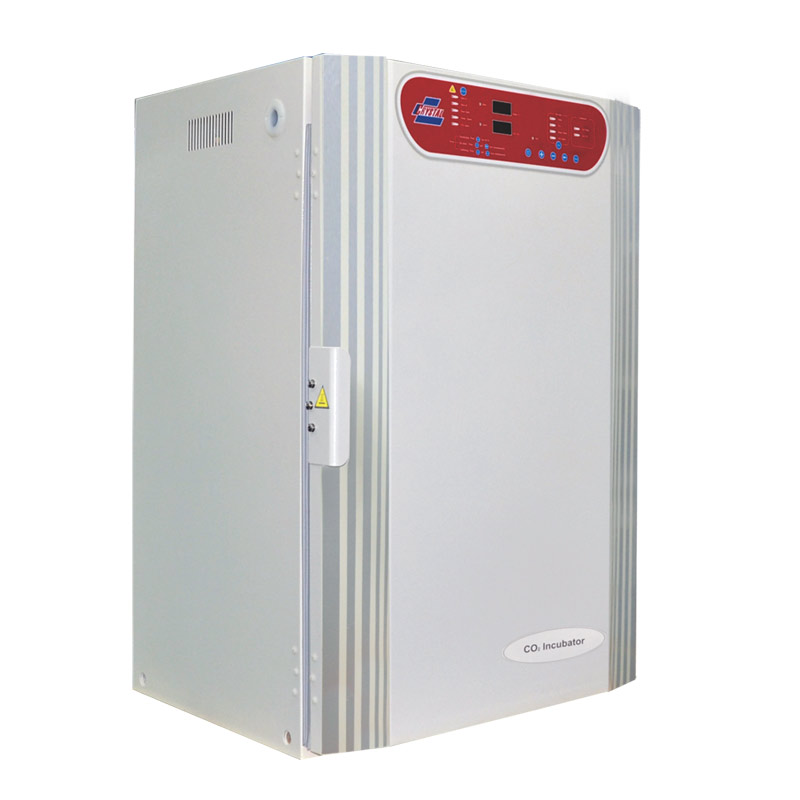

Crystal CO2 incubator offers accurate, reproducible cell culture conditions for microbiology with high temperature uniformity, thanks to the reliable microprocessor controller, which ensures the Bacteria and spores are eliminated by advanced sterilization technology. The unique, deep-drawn H stainless chamber has no built-in obstructions and makes it very easy to clean.
Crystal CO2 incubator offers accurate, reproducible cell culture conditions for microbiology with high temperature uniformity, thanks to the reliable microprocessor controller, which ensures the Bacteria and spores are eliminated by advanced sterilization technology. The unique, deep-drawn H stainless chamber has no built-in obstructions and makes it very easy to clean.
